What Are the Parts of a Garage Door Opener?

A garage door opener is built from several individual parts that each carry a specific responsibility in the system, and each part works in coordination to complete a single open or close cycle. When one part fails, the entire operation is affected, and the door may stop working properly for your home.

Knowing the garage door opener parts inside your system helps you understand what is happening when something goes wrong and what kind of service you actually need. This guide covers every major component, how each one functions, and what to watch for to keep your system running at its best.

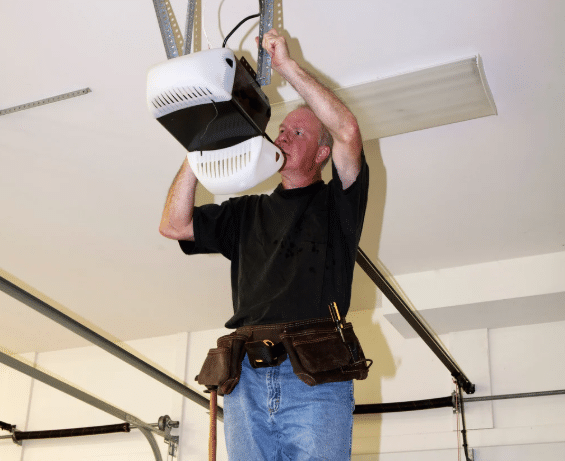

Why Does Knowing Your Garage Door Opener Parts Matter?

Every part inside a garage door opener has a job, and when one of them starts to fail, the strain moves to the parts around it, and the whole system begins to work harder than it should.

Here is why knowing your parts gives you a real advantage:

• Spotting problems early prevents small issues from turning into costly repairs.
• Communicating the issue clearly to a technician leads to faster and more accurate service.
• Identifying the failing part prevents unnecessary replacements across the whole system.
• Knowing what to check saves time and avoids waiting for a service visit for minor issues.
• Better maintenance habits come naturally when you understand what each part does.

To understand what those early warning signs look like, read our guide on Signs Your Garage Door Opener Parts Need Repair, which covers the most common indicators that Aledo, TX homeowners notice before a part completely fails.

The Main Garage Door Opener Parts You Should Know

Knowing what each component is and where it sits makes it easier to understand what your opener is doing when something stops working.

Here are the key parts of a garage door opener and what each one does:

Part	Location	Function	Common Issue
Motor Unit	Mounted on the ceiling	Powers the entire opener system	Humming without movement
Drive System	Along the rail	Moves the trolley back and forth	Grinding or worn sprockets
Rail	Ceiling above the door	Guides the trolley during operation	Misalignment or debris buildup
Trolley	Rides along the rail	Pulls and pushes the door	Sticking or uneven movement
J-Arm	Connects the trolley to the door	Transfers motion to the door panel	Bending from repeated stress
Emergency Release Cord	Hanging from the trolley	Allows manual operation during outages	Tangled or removed by mistake
Safety Sensors	Bottom of both door tracks	Reverses the door when the beam is broken	Misalignment or dirty lenses
Remote Control	Handheld device	Sends a signal to the logic board	Weak signal or dead batteries
Keypad	Outside the garage	Allows code-based entry without a remote	Unresponsive due to dead batteries
Wall Control Panel	Inside the garage	Controls the opener from inside the home	Wiring or connection issues
Logic Board	Inside the motor unit	Processes all signals and controls the operation	Failure from power surges

These parts work as a connected system, and understanding them is the foundation of every successful garage door opener installation and repair decision you will ever make.

How All These Parts Work Together

Step 1 — Signal: Pressing the Garage Door Opener Remote

Pressing the remote sends a wireless signal to the logic board, which reads the code and decides whether to activate the system.

Watch for these signal behaviors that affect whether the cycle begins:

• Low battery levels cause weak or inconsistent signal transmission
• Physical obstructions between the remote and antenna block the signal entirely
• Rolling code technology refreshes the access code with every single press
• A remote that only works up close points to a failing antenna on the opener
• Interference from nearby electronics can disrupt the signal before it reaches the board

Every cycle depends on a clean signal exchange between the remote and the logic board, and any break in that exchange is usually where the problem starts.

Step 2 — Activation: The Motor Kicks In

Once the logic board receives a valid signal, power moves to the garage door motor, and the drive system engages almost immediately.

Pay attention to these activation behaviors that reveal how well the motor is responding:

• A quiet startup means the motor and drive system are working without resistance
• Delayed activation points to a worn logic board or motor connection
• Grinding at startup means the drive system needs lubrication or worn components
• A humming motor that does not move has lost its connection to the drive mechanism
• Repeated failed activations in a short period can overheat the motor over time

Motor activation is where mechanical issues most often become audible, making startup sounds one of the easiest ways to catch a developing problem early.

Step 3 — Movement: The Trolley and J-Arm in Action

After the motor engages, the drive system moves the trolley along the rail, and the J-arm transfers that motion directly into the door panel.

Here is what smooth and problem-free trolley movement looks like in practice:

• Even and consistent travel along the full rail length without hesitation or jerking
• No scraping or grinding sounds as the trolley moves from one end to the other
• Firm J-arm connection that transfers motion without flex or wobble
• The door panel moves in a straight line without tilting or binding against the tracks
• Trolley reaches both fully open and fully closed positions without stopping midway

Proper trolley and J-arm function depends on rail alignment, and even a slight shift can cause uneven door movement across the entire drive system.

Step 4 — Balance: Springs and Cables Do the Heavy Lifting

Torsion springs and cables carry the majority of the door’s weight, so the motor only needs to guide the movement rather than lift the full load on its own.

Notice these balance-related signs that show whether the springs and cables are working correctly:

• A well-balanced door stays in place when manually stopped at the halfway point
• Cables running evenly on both sides indicate proper tension distribution
• Torsion springs above the door should show no visible gaps or signs of separation
• Motor strain during lifting usually means the springs are losing tension
• Uneven movement from side to side often points to a cable that has slipped or frayed

Spring-and-cable balance protects the motor from overworking during every open-and-close cycle.

Step 5 — Stop: The Limit Switch Takes Over

Limit switches detect when the door reaches its fully open or fully closed position and immediately cut power to the motor.

Watch for these limit switch behaviors that show whether the stop sequence is working correctly:

• Door stops cleanly at the fully open position without bouncing or reversing
• Motor cuts power completely once the door contacts the ground at close
• A door reversing before fully closing means the limit switch settings need adjustment
• Stopping short of fully open means the open limit needs extending
• Limit switch issues are adjustable through the settings panel on the motor unit

Limit switches are a small but critical part of every close cycle and directly affect how the entire opener performs.

Benefits of Having Properly Working Garage Door Opener Parts

Keeping every opener part in good condition protects your home, extends your system’s lifespan, and keeps daily operation running without interruption.

Here are the key benefits of maintaining properly working garage door opener parts:

• Full door closure keeps unauthorized entry out of the home
• No single part overcompensates, which extends the life of the motor and drive system
• Garage door opener sensors and limit switches respond correctly, reducing accident risk
• Minor issues get caught early before they develop further
• Consistent performance means the opener responds correctly every time

Well-maintained garage door opener parts work together as a system, and every component that functions correctly takes pressure off the others.

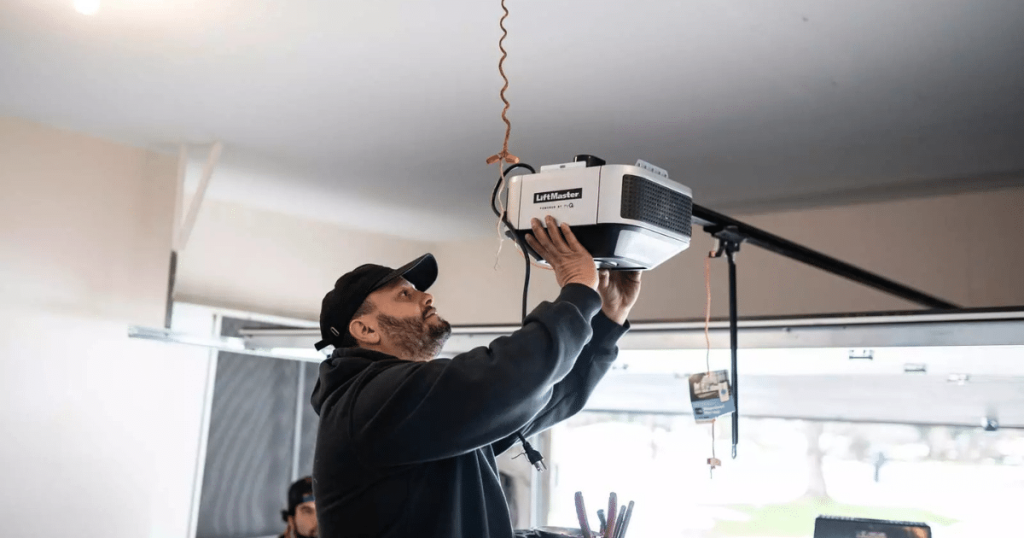

How to Maintain Your Garage Door Opener Parts

Regular garage door opener maintenance keeps every part working as designed and reduces the likelihood of unexpected failures during daily operation.

Here are the most important maintenance steps every homeowner should follow:

• Inspect the rail, trolley, and J-arm every few months for wear, bending, or debris
• Test safety sensors monthly by placing an object in the door’s path and confirming reversal
• Replace remote and keypad batteries every one to two years before signal issues begin
• Lubricate the rail, rollers, and the majority of the hinges at least twice a year
• Check the emergency release cord to confirm it disengages the trolley properly
• Wipe down sensor lenses regularly to keep the photo eye beam free of dust and dirt

To keep your system in top condition year-round, read our full guide on How to Maintain Your Garage Door Opener Parts, which walks through every maintenance task in detail so nothing gets overlooked.

Signs Your Garage Door Opener Parts Need Repair

Knowing the warning signs of a failing part helps you act before the problem spreads to other components in the system.

Here are the most common signs your garage door opener parts need repair:

• Grinding or squealing sounds point to worn drive system components
• Door reversal before fully closing signals a sensor or limit switch issue
• Inconsistent remote or keypad response, even after fresh batteries are installed
• Motor runs, but the door does not move, indicating a drive system disconnection
• Visible wear or misalignment on the rail, trolley, or J-arm during a visual check

Scheduling a garage door opener repair at the first sign of trouble helps keep the issue contained and prevents further wear on the rest of the system.

When It’s Time to Replace Your Garage Door Opener Parts

Some garage door opener parts reach a point where repair no longer restores full performance, and replacement becomes the more practical choice.

Here are the most common signs it is time to replace your garage door opener parts:

• Parts repaired multiple times in a short period have likely reached the end of their lifespan
• A motor that hums without moving the door needs replacement, not repair
• Logic board malfunctions after servicing indicate a deeper electrical issue
• Worn rollers, sprockets, and drive components compromise the entire opener
• Openers older than 15 years often have no available parts for further repairs

To learn exactly when replacement makes more sense than repair, read our full guide on When to Replace Your Garage Door Opener Parts, which covers every scenario where swapping out a part is the more practical path forward.

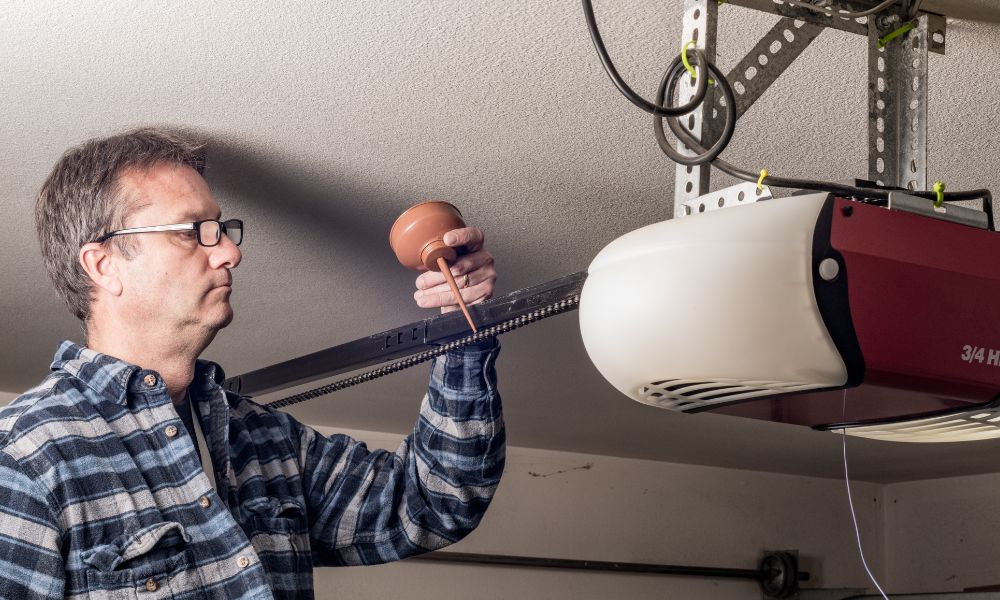

Get to Know Your Garage Door Opener Parts and Keep Every One of Them Working

Every garage door opener is built from individual parts that each play a specific role, and understanding what they are can help you make better decisions about your system. Knowing what to inspect, when to act, and what to watch for keeps your opener performing the way it was designed to for years to come.

TCAMM Door & Gate has been helping Aledo, TX, homeowners get the most out of their garage door opener parts through honest inspections, accurate diagnostics, and reliable garage door services. Contact us or give us a call today, and let our team assess what your system needs to keep every part running at its best.
